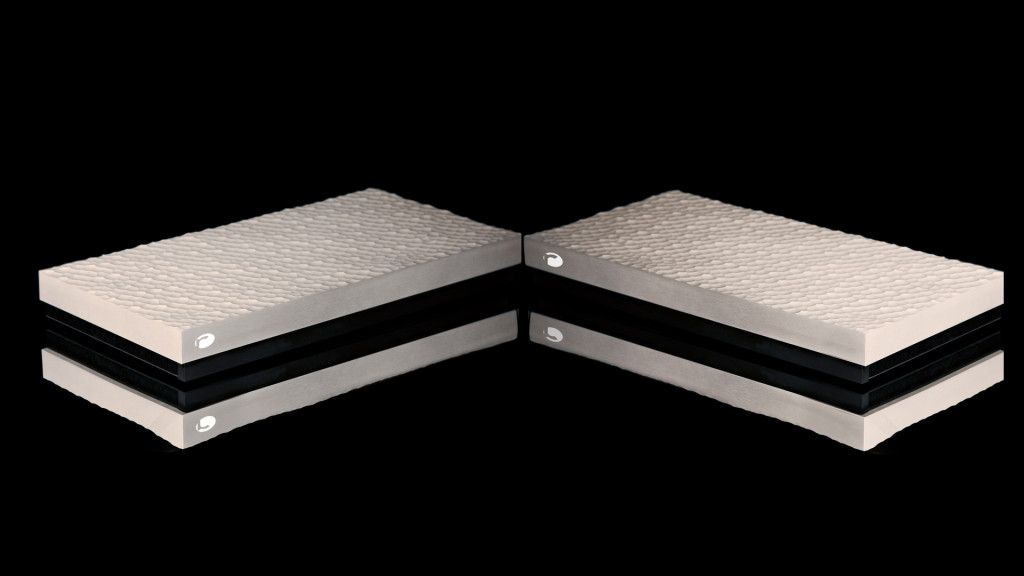

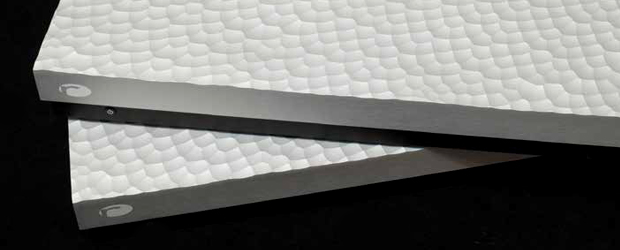

Resolution Audio is proud to introduce the latest addition to our Cantata series: the m100 mono amplifier. This amplifier features the same discrete, ultra-pure Class A/B circuit topology as our highly regarded C50 integrated amplifier. With an increased rating of 100 watts. Now a full Cantata system can be enjoyed even when using less efficient loudspeakers.

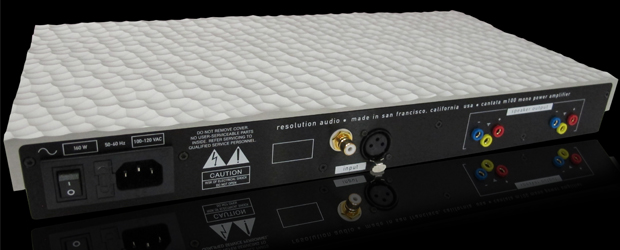

The m100 mono amplifier includes two sets of banana jacks to accommodate bi-wire configurations and accepts either RCA or Balanced XLR input from our Cantata Music center or any preamplifier.
The sonic signature is cut of the same cloth as the C50, while providing twice as much power per channel at the output, there is a greater dynamic capability even at lower listening levels, courtesy of the additional headroom in the power supply.
We invite you to listen for yourself and experience the musical rewards.
100 watts into 8 ohms <1%
700mV for rated output
+31.5dB
XLR or RCA (jumper must be installed in XLR input)
2 pair, 4mm banana
Red – positive (+)
Blue – negative (–)
Yellow – ground (if available on loudspeaker)
Pre-configured at factory for either 100-120VAC 60Hz or 200-240 VAC 50Hz
160 Watts maximum active mode, < 1 Watt in standby mode
43 x 23 x 5 cm (17″ x 9″ x 2”)
6 kg (13 lbs.)
